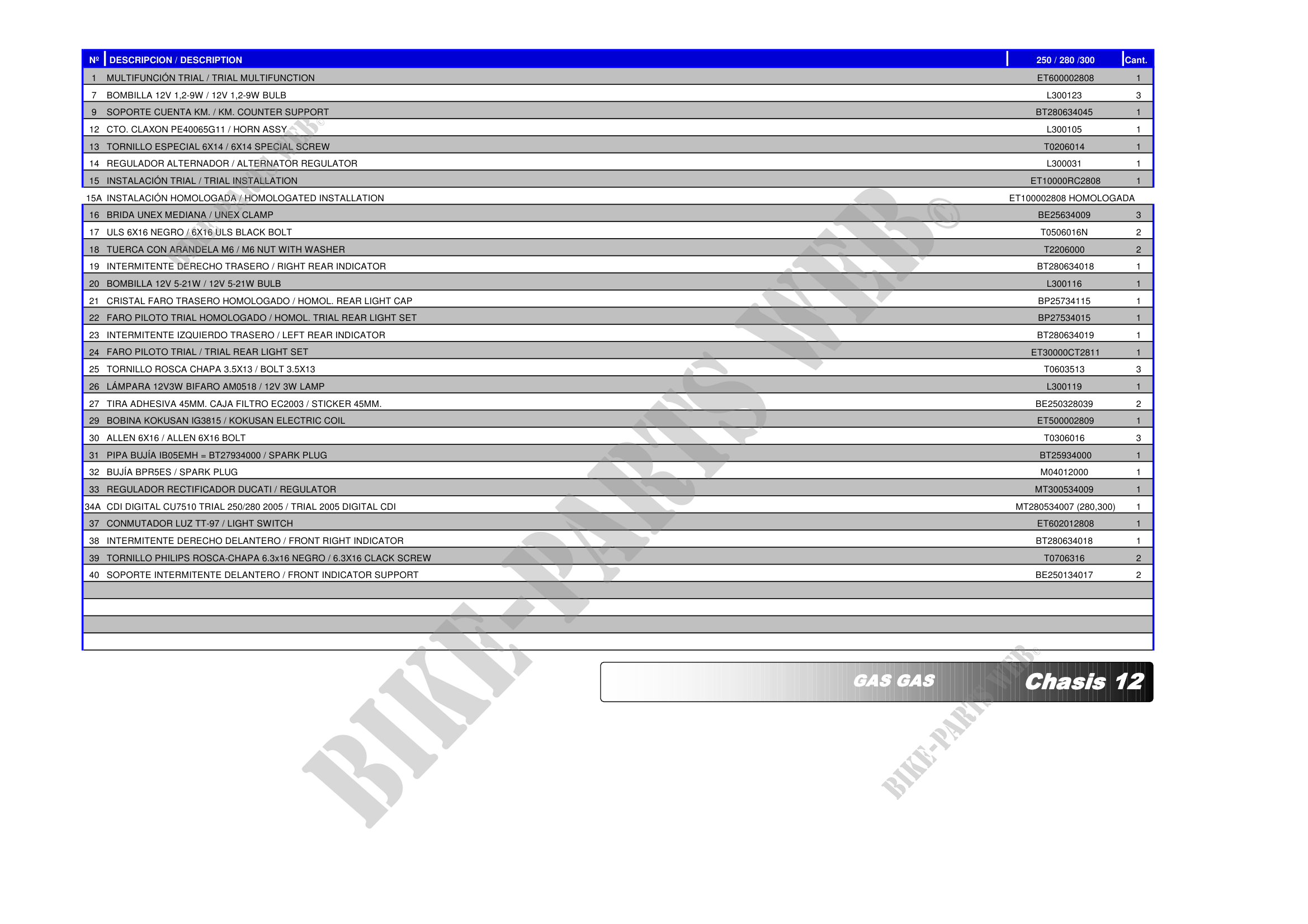

TXT 300 RAGA REPLICA 305 Microfiches Gasgas : Page 22

          N    DESCRIPCION / DESCRIPTION                                                      250 / 280 /300      Cant.
 1   MULTIFUNCIÓN TRIAL / TRIAL MULTIFUNCTION                                       ET600002808           1
 7   BOMBILLA 12V 1,2-9W / 12V 1,2-9W BULB                                            L300123             3
 9   SOPORTE CUENTA KM. / KM. COUNTER SUPPORT                                       BT280634045           1
12 CTO. CLAXON PE40065G11 / HORN ASSY                                                 L300105             1
13 TORNILLO ESPECIAL 6X14 / 6X14 SPECIAL SCREW                                       T0206014             1
14 REGULADOR ALTERNADOR / ALTERNATOR REGULATOR                                        L300031             1
15 INSTALACIÓN TRIAL / TRIAL INSTALLATION                                          ET10000RC2808          1
15A INSTALACIÓN HOMOLOGADA / HOMOLOGATED INSTALLATION                          ET100002808 HOMOLOGADA
16 BRIDA UNEX MEDIANA / UNEX CLAMP                                                  BE25634009            3
17 ULS 6X16 NEGRO / 6X16 ULS BLACK BOLT                                              T0506016N            2
18 TUERCA CON ARANDELA M6 / M6 NUT WITH WASHER                                       T2206000             2
19 INTERMITENTE DERECHO TRASERO / RIGHT REAR INDICATOR                              BT280634018           1
20 BOMBILLA 12V 5-21W / 12V 5-21W BULB                                                L300116             1
21 CRISTAL FARO TRASERO HOMOLOGADO / HOMOL. REAR LIGHT CAP                          BP25734115            1
22 FARO PILOTO TRIAL HOMOLOGADO / HOMOL. TRIAL REAR LIGHT SET                       BP27534015            1
23 INTERMITENTE IZQUIERDO TRASERO / LEFT REAR INDICATOR                             BT280634019           1
24 FARO PILOTO TRIAL / TRIAL REAR LIGHT SET                                        ET30000CT2811          1
25 TORNILLO ROSCA CHAPA 3.5X13 / BOLT 3.5X13                                         T0603513             3
26 LÁMPARA 12V3W BIFARO AM0518 / 12V 3W LAMP                                          L300119             1
27 TIRA ADHESIVA 45MM. CAJA FILTRO EC2003 / STICKER 45MM.                           BE250328039           2
29 BOBINA KOKUSAN IG3815 / KOKUSAN ELECTRIC COIL                                    ET500002809           1
30 ALLEN 6X16 / ALLEN 6X16 BOLT                                                      T0306016             3
31 PIPA BUJÍA IB05EMH = BT27934000 / SPARK PLUG                                      BT25934000           1
32 BUJÍA BPR5ES / SPARK PLUG                                                         M04012000            1
33 REGULADOR RECTIFICADOR DUCATI / REGULATOR                                        MT300534009           1
34A CDI DIGITAL CU7510 TRIAL 250/280 2005 / TRIAL 2005 DIGITAL CDI              MT280534007 (280,300)     1
37 CONMUTADOR LUZ TT-97 / LIGHT SWITCH                                              ET602012808           1
38 INTERMITENTE DERECHO DELANTERO / FRONT RIGHT INDICATOR                           BT280634018           1
39 TORNILLO PHILIPS ROSCA-CHAPA 6.3x16 NEGRO / 6.3X16 CLACK SCREW                    T0706316             2
40 SOPORTE INTERMITENTE DELANTERO / FRONT INDICATOR SUPPORT                         BE250134017           2




                                                                     GAS GAS     Chasis 12
