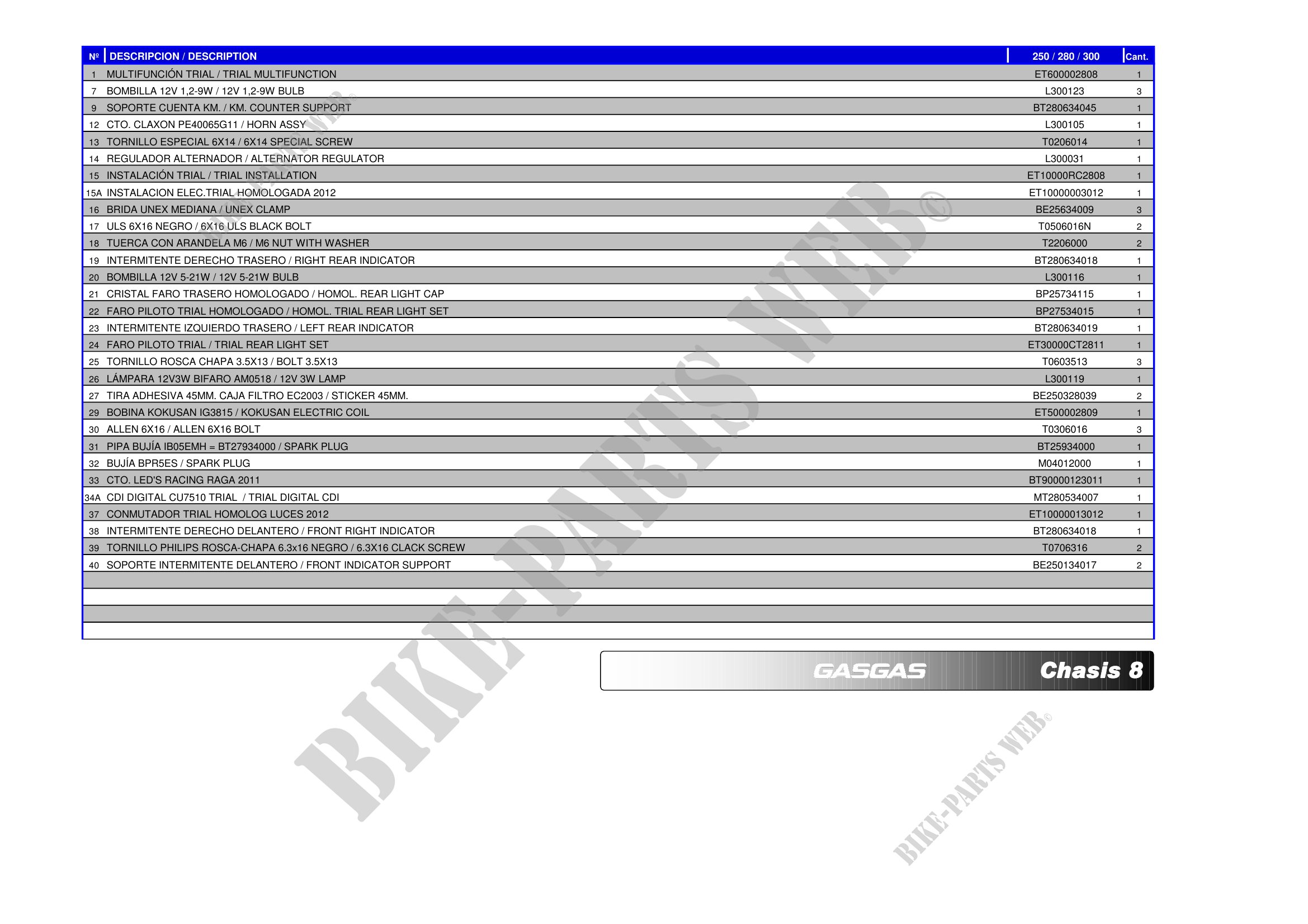

TXT 280 REPLICA FACTORY 310 Microfiches Gasgas : Page 22

          N    DESCRIPCION / DESCRIPTION                                      250 / 280 / 300   Cant.
 1   MULTIFUNCIÓN TRIAL / TRIAL MULTIFUNCTION                        ET600002808        1
 7   BOMBILLA 12V 1,2-9W / 12V 1,2-9W BULB                             L300123          3
 9   SOPORTE CUENTA KM. / KM. COUNTER SUPPORT                       BT280634045         1
12 CTO. CLAXON PE40065G11 / HORN ASSY                                  L300105          1
13 TORNILLO ESPECIAL 6X14 / 6X14 SPECIAL SCREW                        T0206014          1
14 REGULADOR ALTERNADOR / ALTERNATOR REGULATOR                         L300031          1
15 INSTALACIÓN TRIAL / TRIAL INSTALLATION                           ET10000RC2808       1
15A INSTALACION ELEC.TRIAL HOMOLOGADA 2012                          ET10000003012       1
16 BRIDA UNEX MEDIANA / UNEX CLAMP                                   BE25634009         3
17 ULS 6X16 NEGRO / 6X16 ULS BLACK BOLT                              T0506016N          2
18 TUERCA CON ARANDELA M6 / M6 NUT WITH WASHER                        T2206000          2
19 INTERMITENTE DERECHO TRASERO / RIGHT REAR INDICATOR               BT280634018        1
20 BOMBILLA 12V 5-21W / 12V 5-21W BULB                                 L300116          1
21 CRISTAL FARO TRASERO HOMOLOGADO / HOMOL. REAR LIGHT CAP           BP25734115         1
22 FARO PILOTO TRIAL HOMOLOGADO / HOMOL. TRIAL REAR LIGHT SET        BP27534015         1
23 INTERMITENTE IZQUIERDO TRASERO / LEFT REAR INDICATOR              BT280634019        1
24 FARO PILOTO TRIAL / TRIAL REAR LIGHT SET                         ET30000CT2811       1
25 TORNILLO ROSCA CHAPA 3.5X13 / BOLT 3.5X13                          T0603513          3
26 LÁMPARA 12V3W BIFARO AM0518 / 12V 3W LAMP                           L300119          1
27 TIRA ADHESIVA 45MM. CAJA FILTRO EC2003 / STICKER 45MM.           BE250328039         2
29 BOBINA KOKUSAN IG3815 / KOKUSAN ELECTRIC COIL                     ET500002809        1
30 ALLEN 6X16 / ALLEN 6X16 BOLT                                       T0306016          3
31 PIPA BUJÍA IB05EMH = BT27934000 / SPARK PLUG                      BT25934000         1
32 BUJÍA BPR5ES / SPARK PLUG                                         M04012000          1
33 CTO. LED'S RACING RAGA 2011                                      BT90000123011       1
34A CDI DIGITAL CU7510 TRIAL / TRIAL DIGITAL CDI                     MT280534007        1
37 CONMUTADOR TRIAL HOMOLOG LUCES 2012                              ET10000013012       1
38 INTERMITENTE DERECHO DELANTERO / FRONT RIGHT INDICATOR           BT280634018         1
39 TORNILLO PHILIPS ROSCA-CHAPA 6.3x16 NEGRO / 6.3X16 CLACK SCREW     T0706316          2
40 SOPORTE INTERMITENTE DELANTERO / FRONT INDICATOR SUPPORT         BE250134017         2




                                                                     Chasis 8
